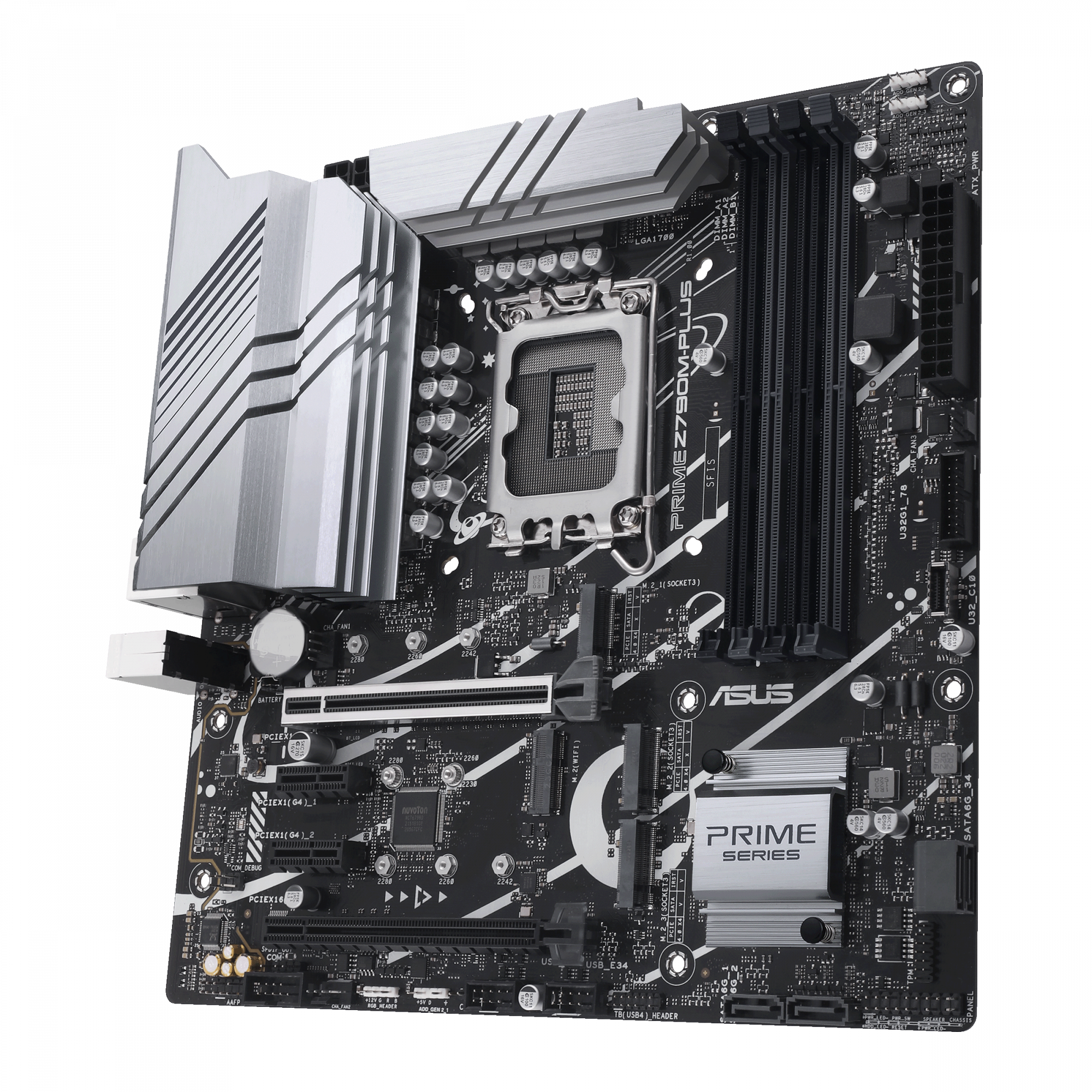

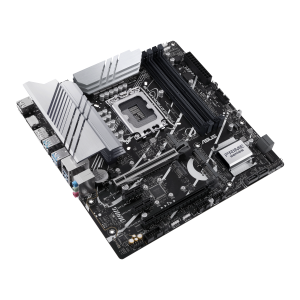

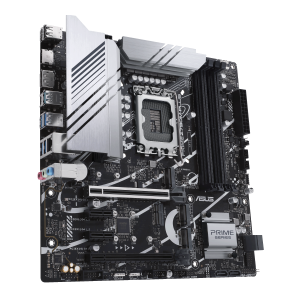

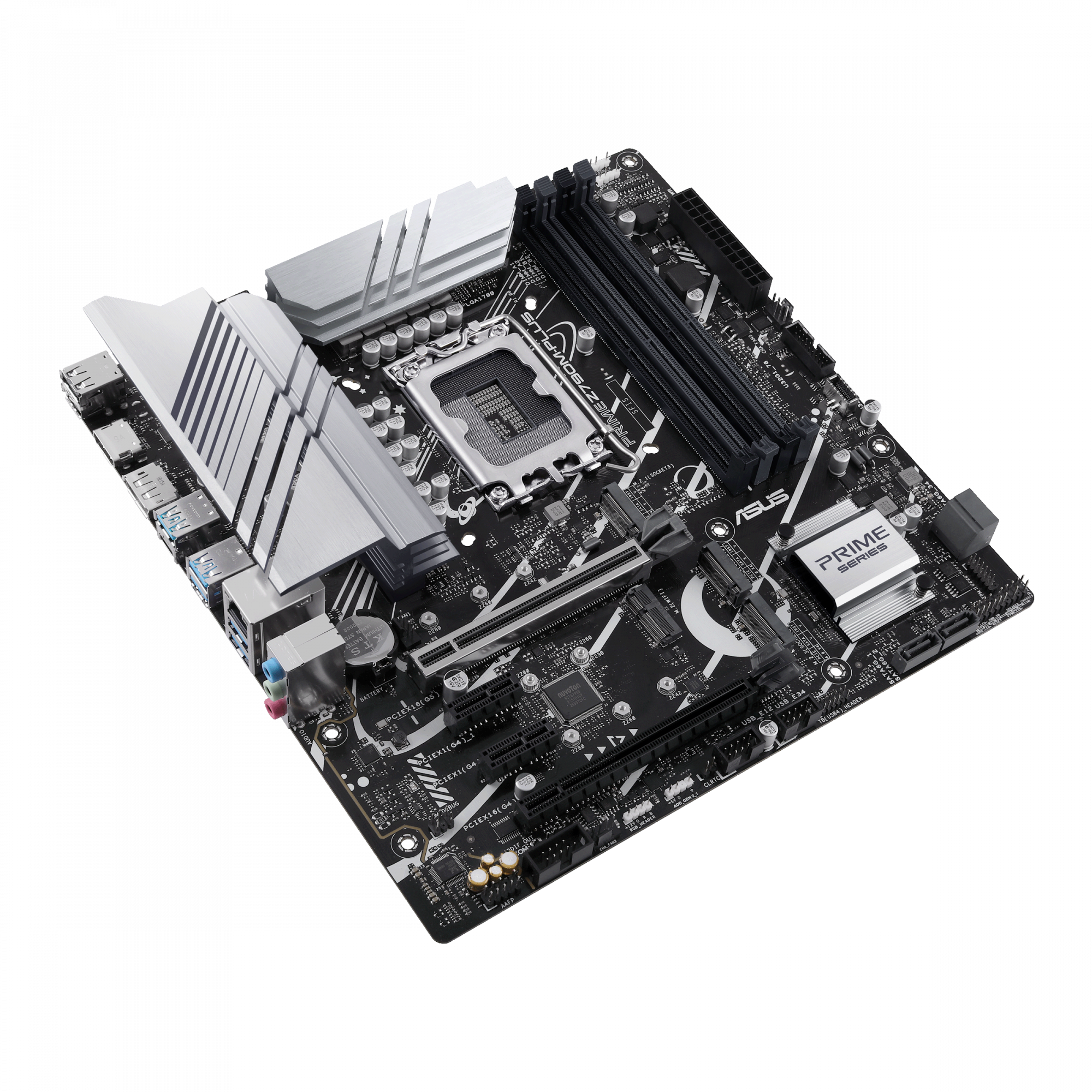

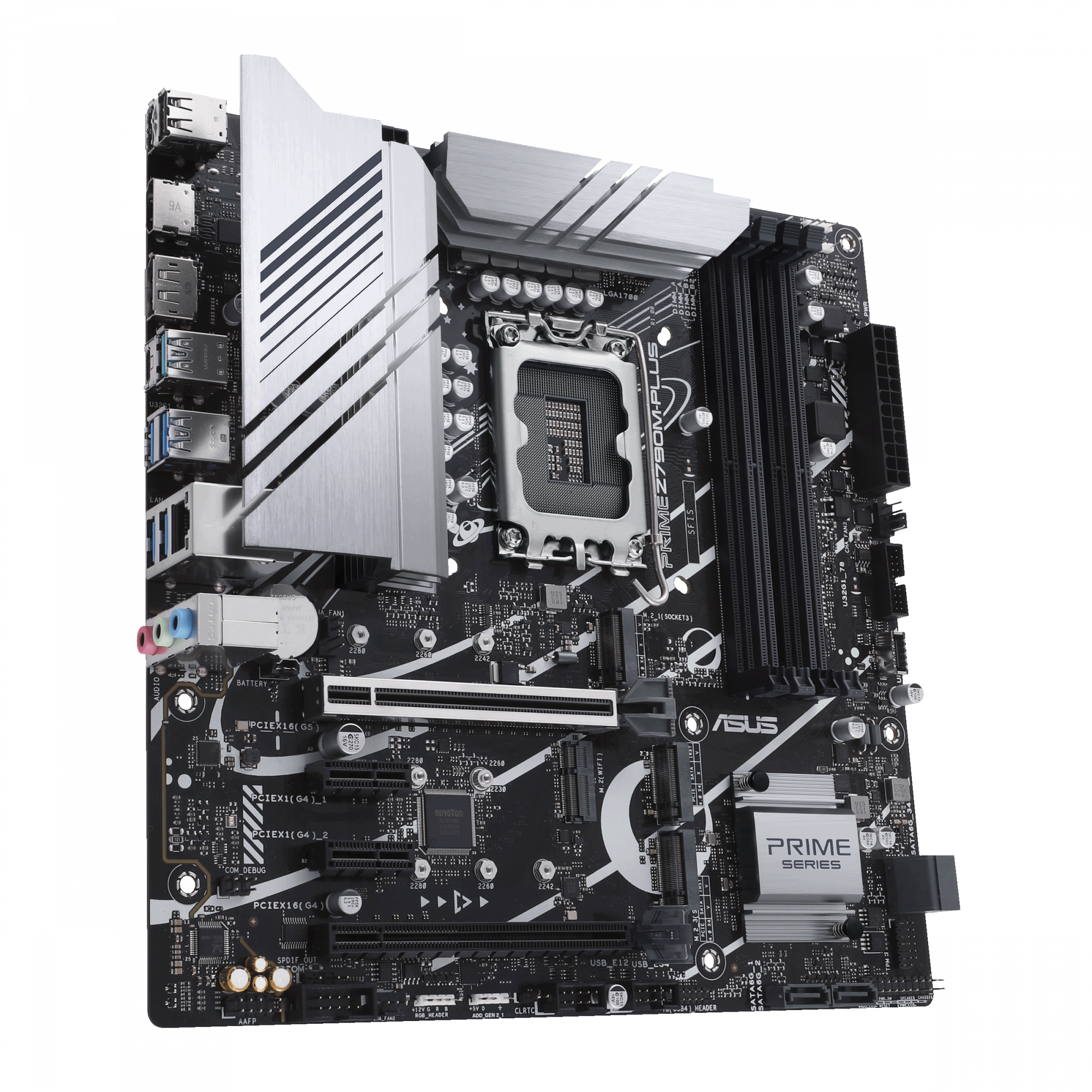

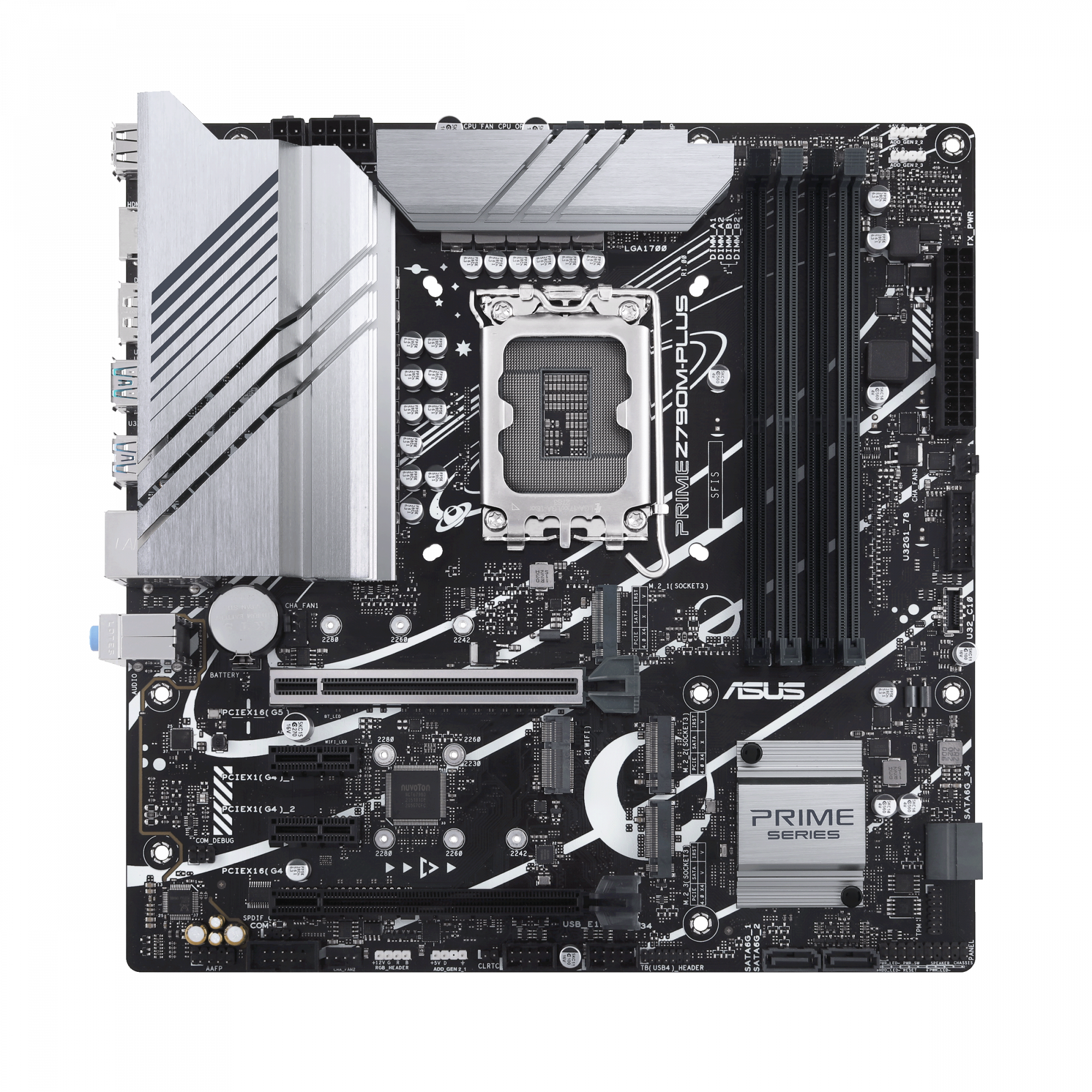

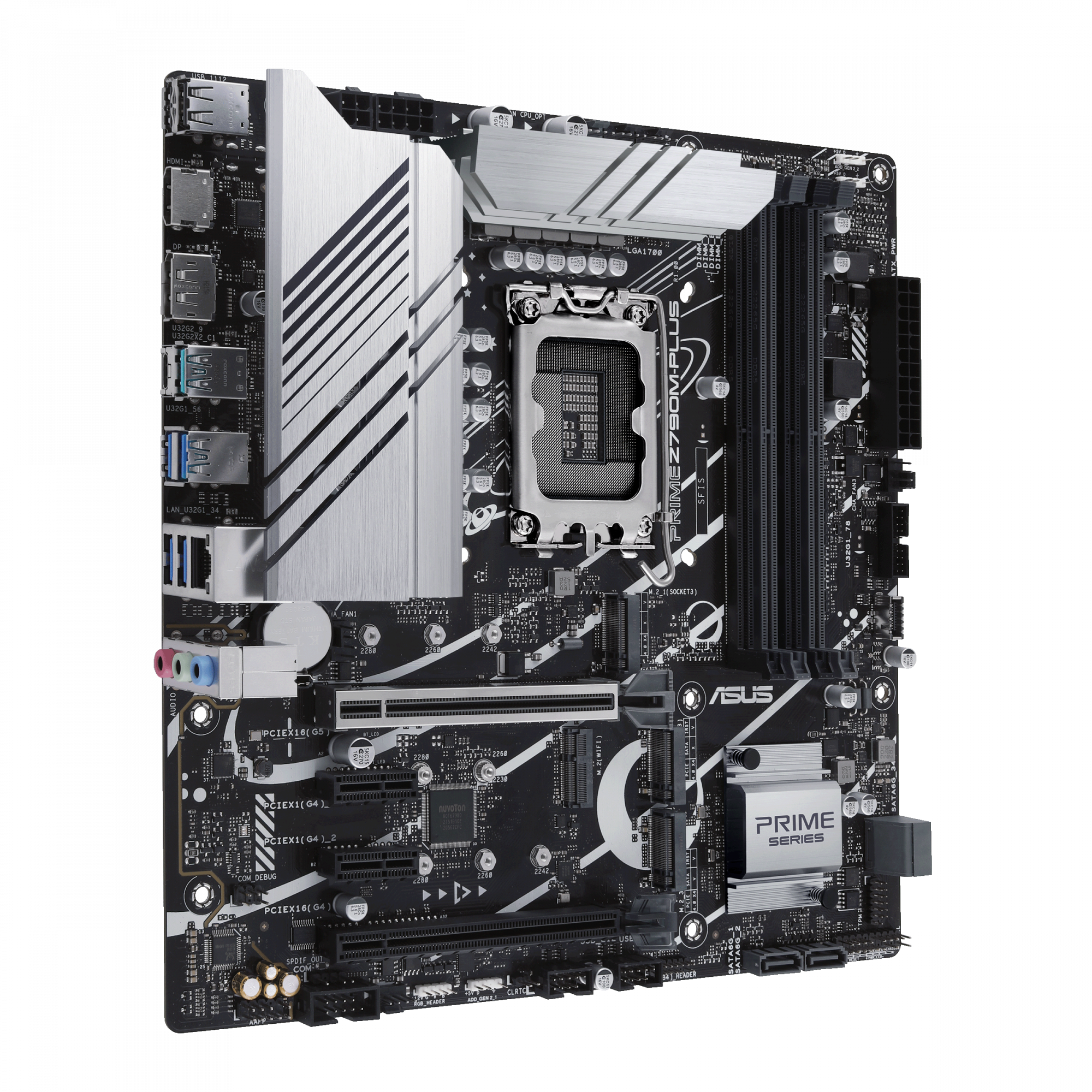

ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
Roll over image to zoom inClick to Open expanded view
ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
Print
Model: PRIME Z790M-PLUS
EAN: 4711387025741

ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX

Manufacturer:
Asus
ASUS PRIME Z790M-PLUS, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR5-SDRAM, 128 GB, DIMM
Please log in to see your price
Related products

Description

ASUS PRIME Z790M-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet

Product Properties

  • Model
  • PRIME Z790M-PLUS
  • EAN
  • 4711387025741
  • BIOS
  • BIOS memory size
  • 192 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • Number of M.2 (M) slots
  • 3
  • PCI Express x1 (Gen 4.x) slots
  • 2
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel Z790
  • Motherboard form factor
  • micro ATX
  • Power source type
  • ATX
  • Product colour
  • Aluminium, Black
  • Windows operating systems supported
  • Windows 10, Windows 11
  • Graphics
  • On-board graphics card
  • No
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • Audio connector
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Number of chassis fan connectors
  • 3
  • Number of COM connectors
  • 1
  • Number of SATA connectors
  • 0
  • Number of SATA II connectors
  • 0
  • Number of SATA III connectors
  • 4
  • Peripheral (Molex) power connectors (4-pin)
  • 1
  • Power fan connector
  • Yes
  • RGB
  • Yes
  • S/PDIF out connector
  • Yes
  • Serial port headers
  • 1
  • Thunderbolt headers
  • 1
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 0
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speeds
  • 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • No
  • Other features
  • mSATA ports quantity
  • 0
  • Packaging content
  • Bundled software
  • ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
  • Cables included
  • SATA
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700

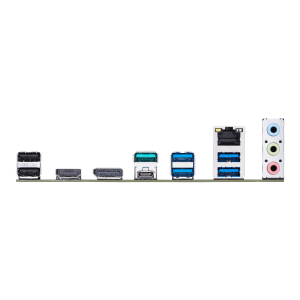

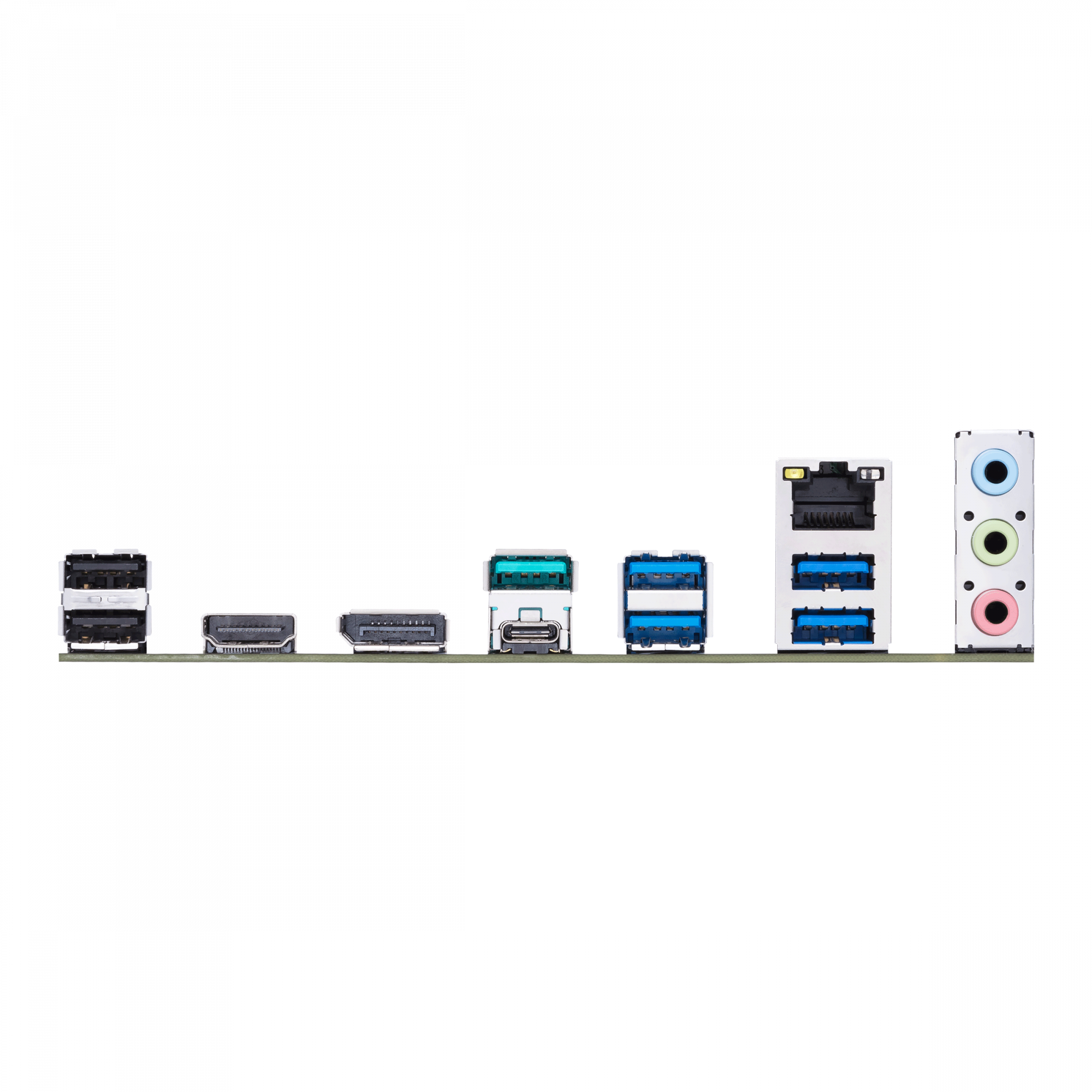

  • Rear panel I/O ports
  • COM ports quantity
  • 1
  • DisplayPort version
  • 1.4
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.0
  • Headphone outputs
  • 1
  • Line-in
  • Yes
  • Microphone in
  • Yes
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • USB connector type
  • USB Type-A
  • VGA (D-Sub) ports quantity
  • 0
  • Storage controllers
  • Number of HDDs supported
  • 3
  • Number of storage drives supported
  • 4
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, PCI Express 4.0, SATA
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Width
  • 244 mm
