Description

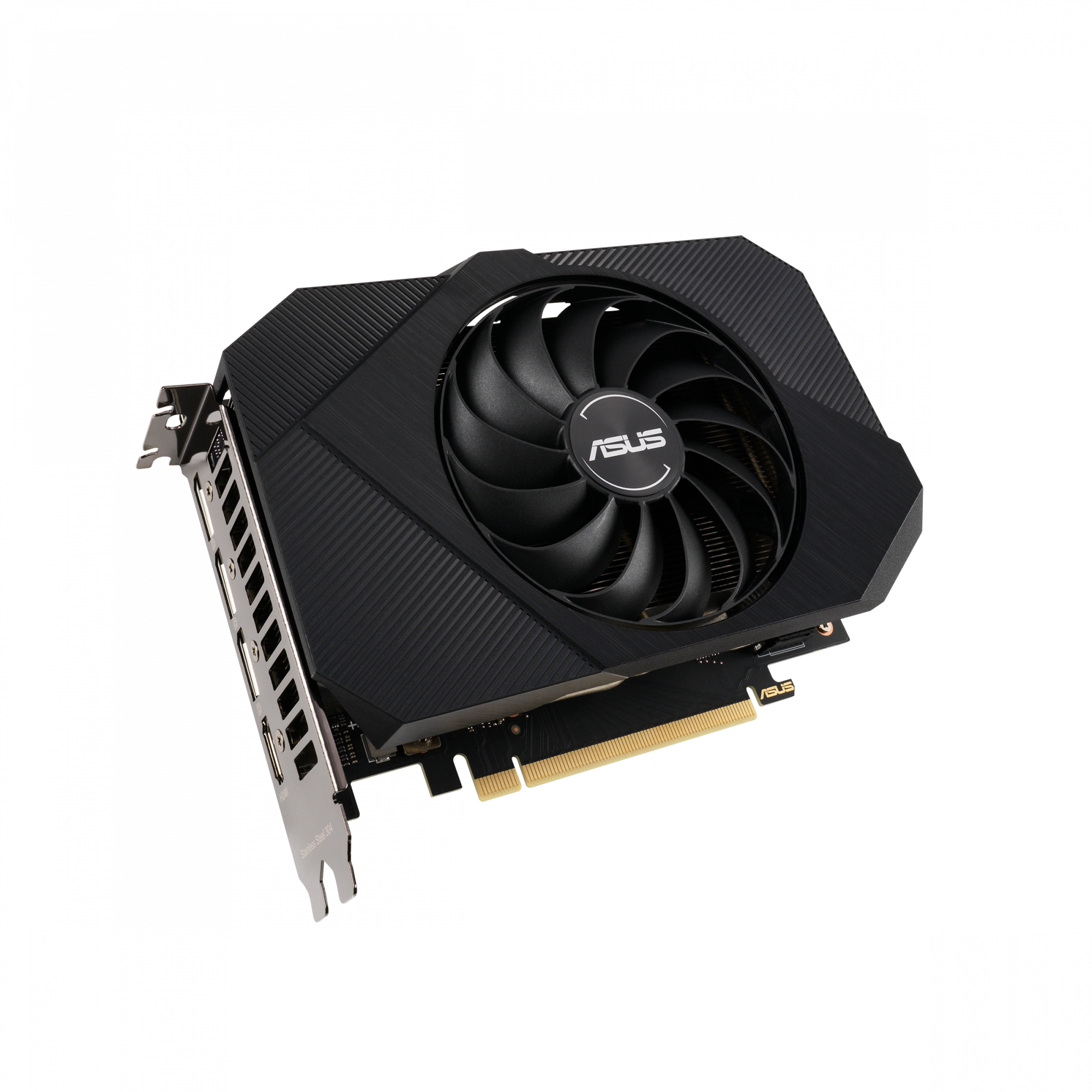

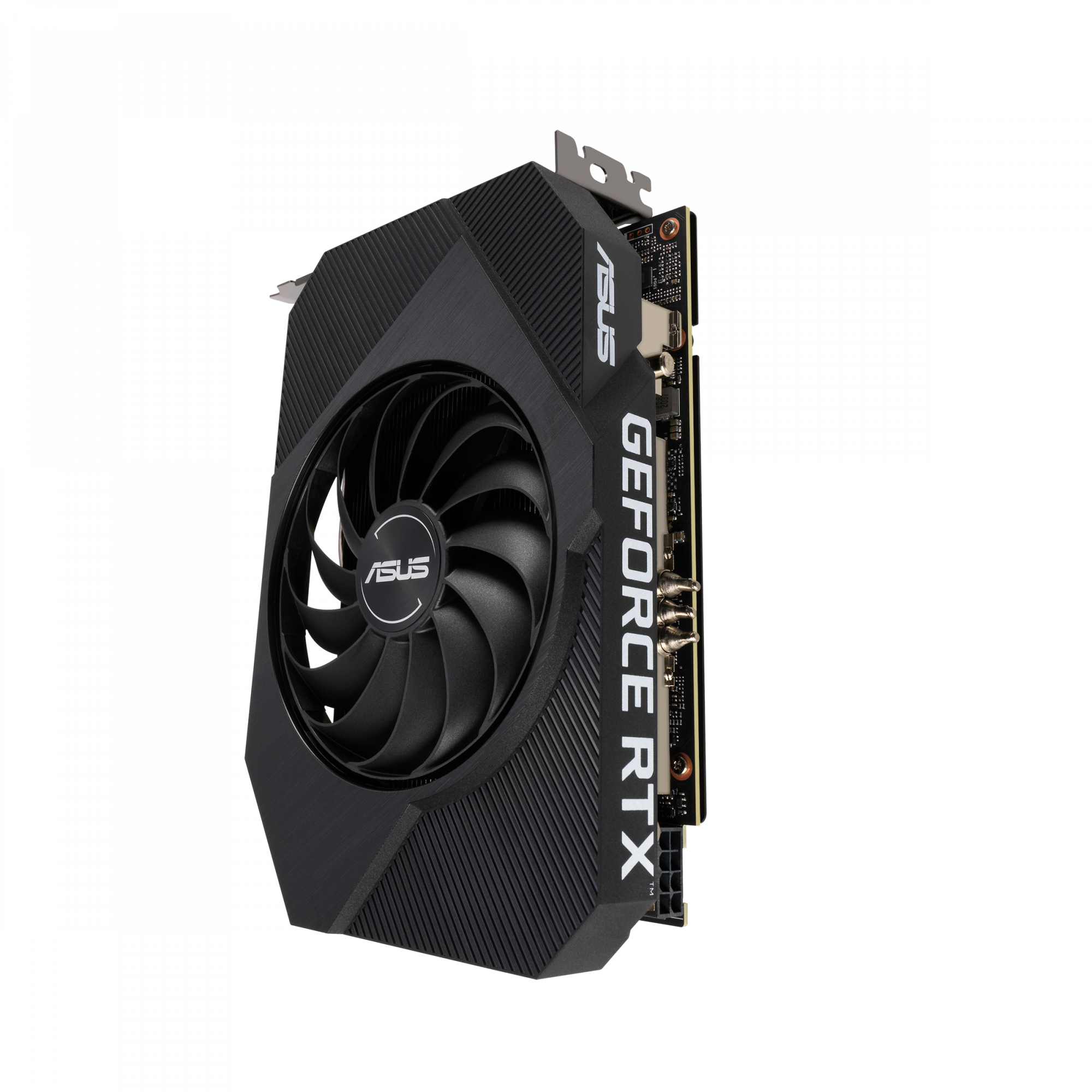

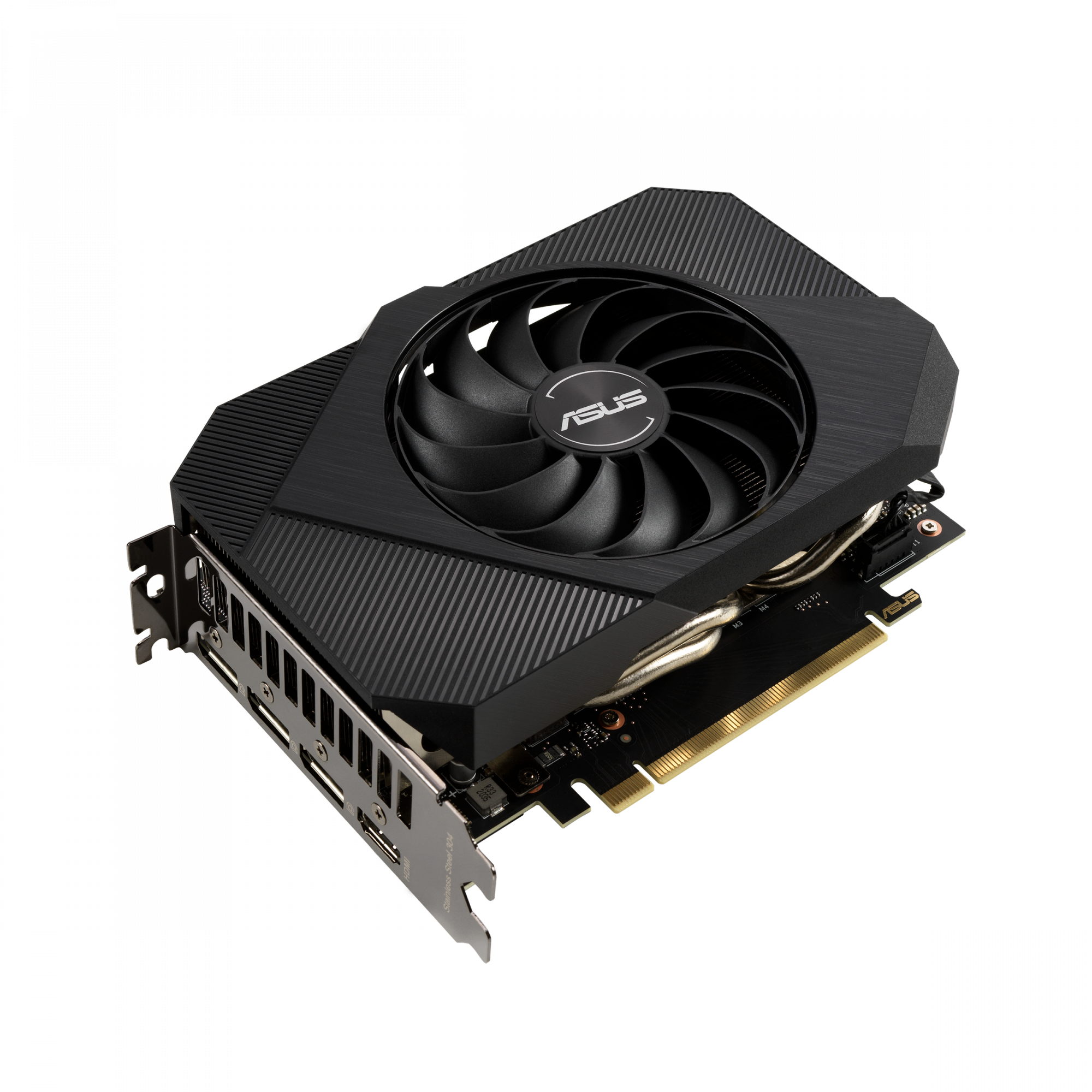

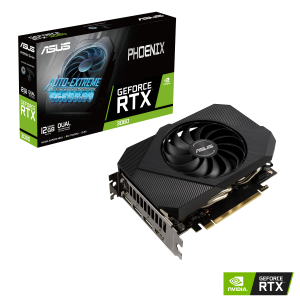

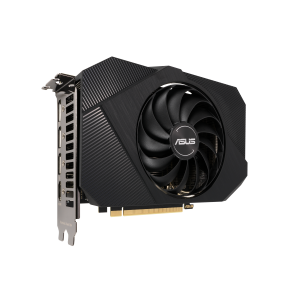

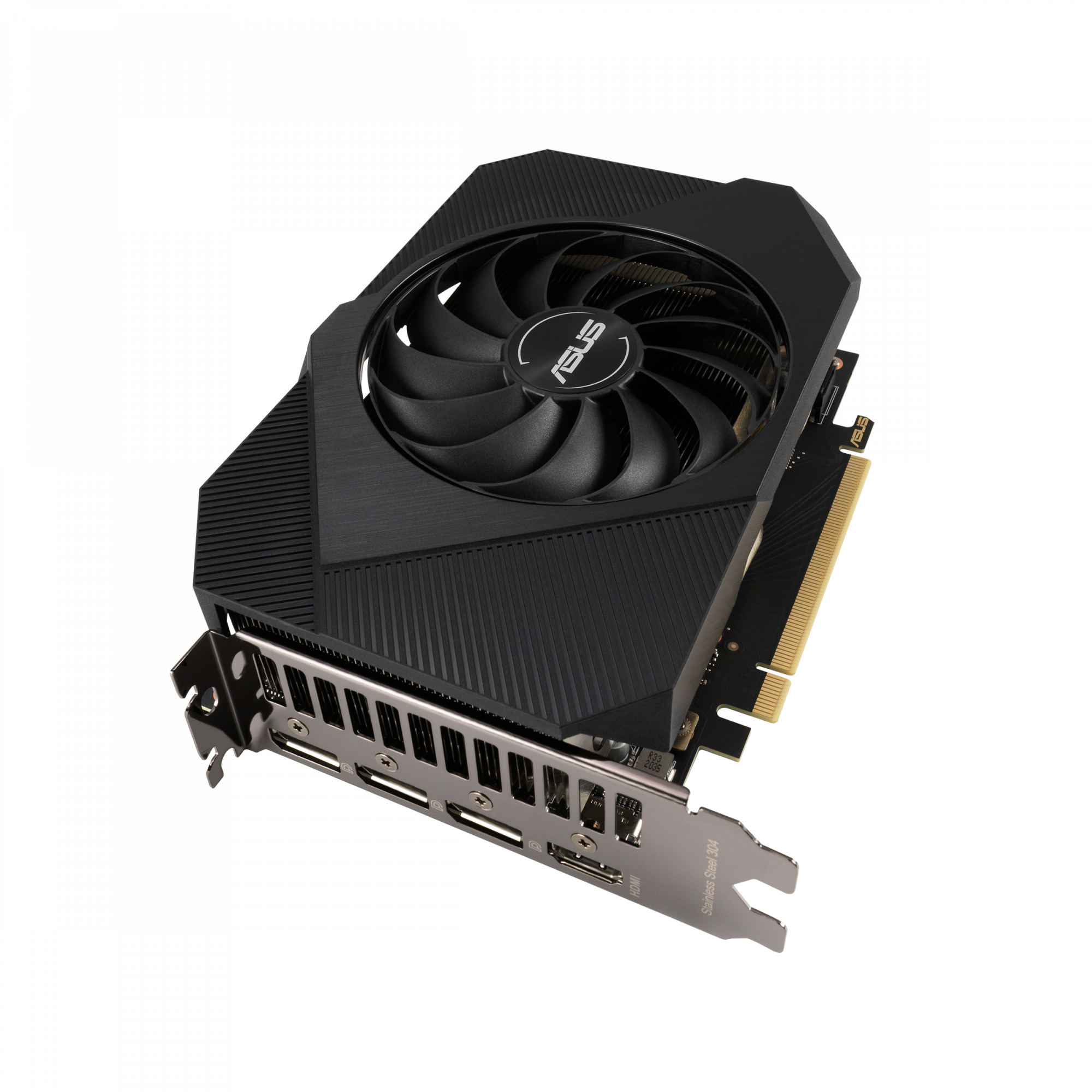

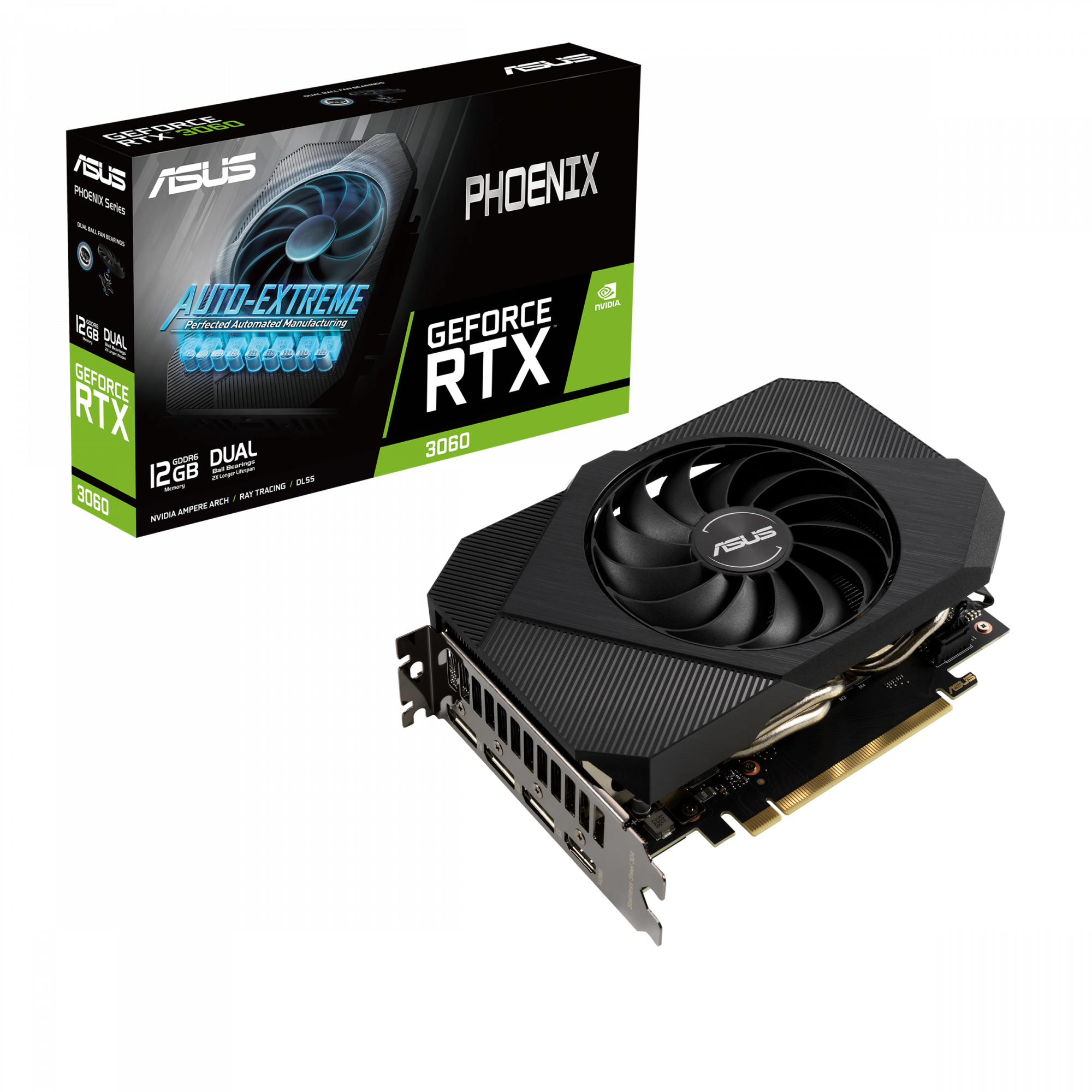

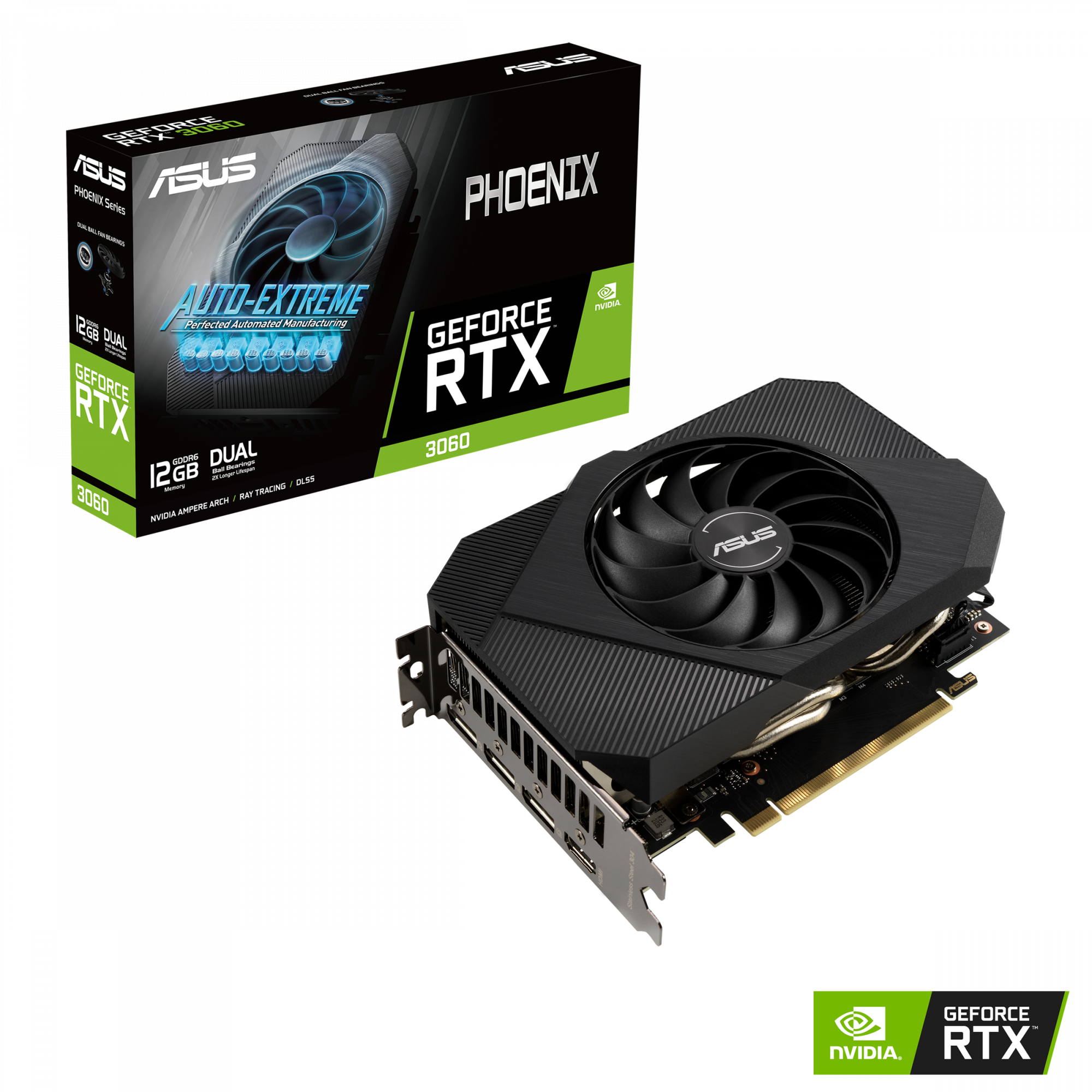

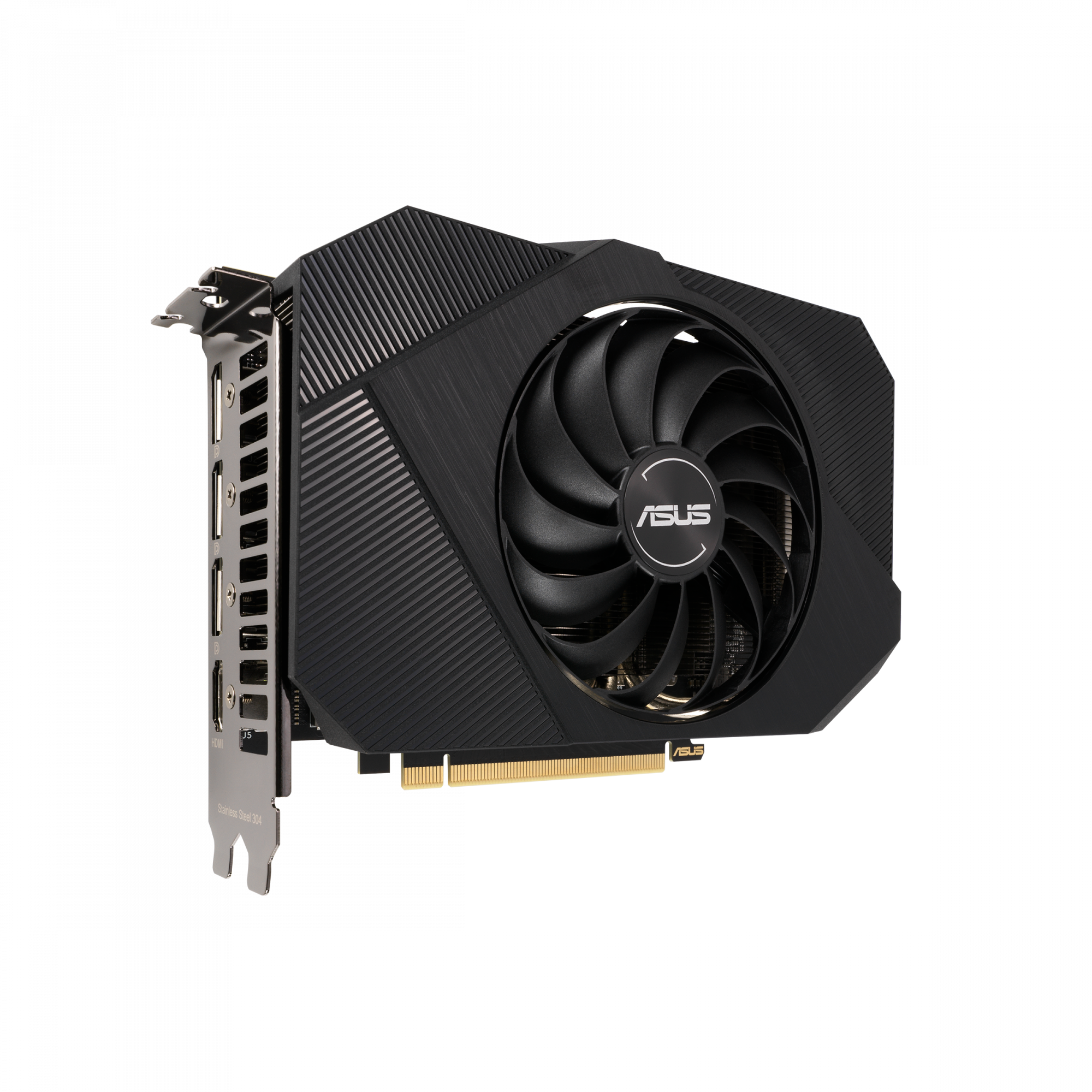

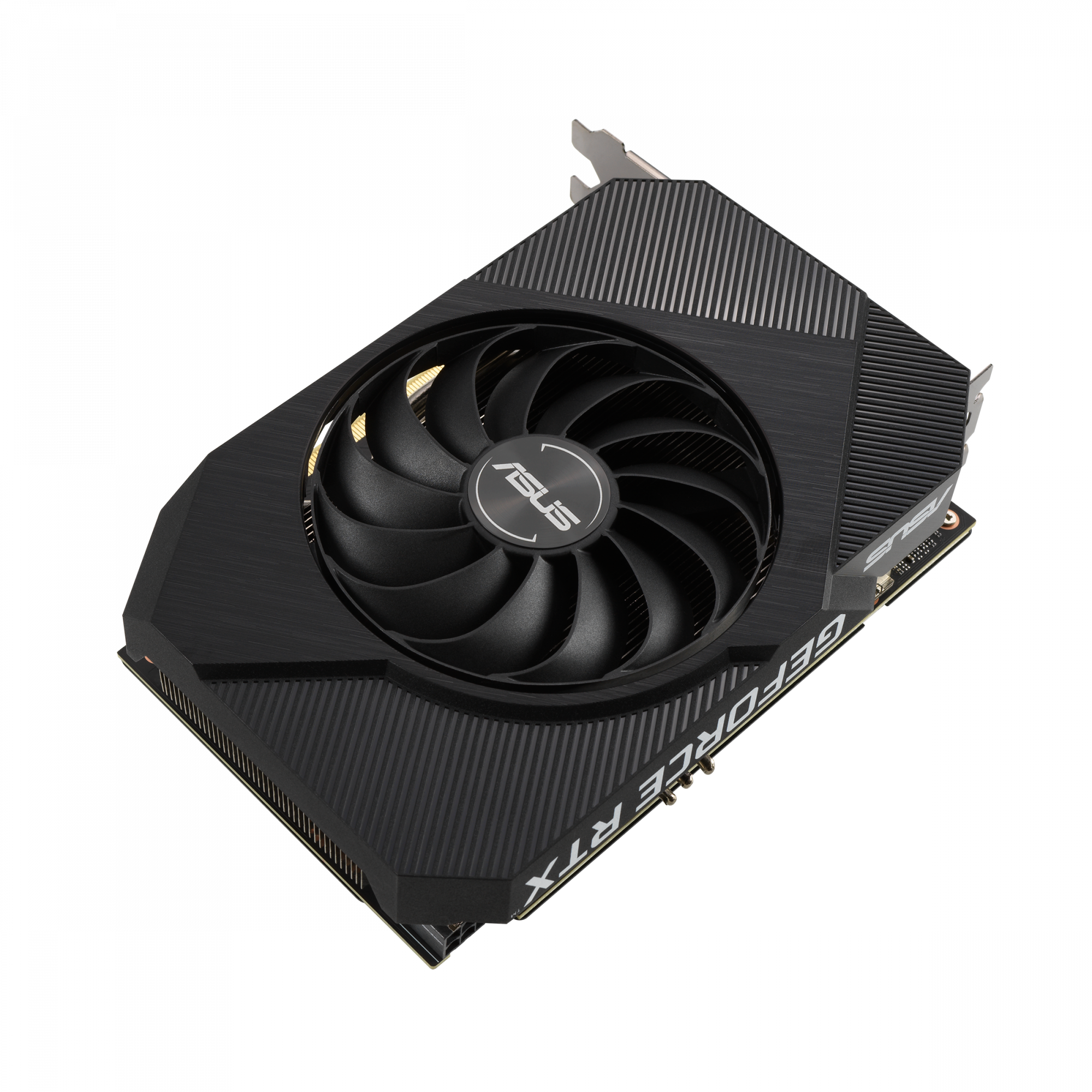

ASUS Phoenix PH-RTX3060-12G-V2. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 1 fan(s)

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities

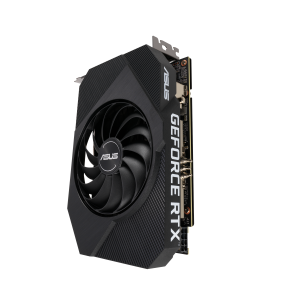

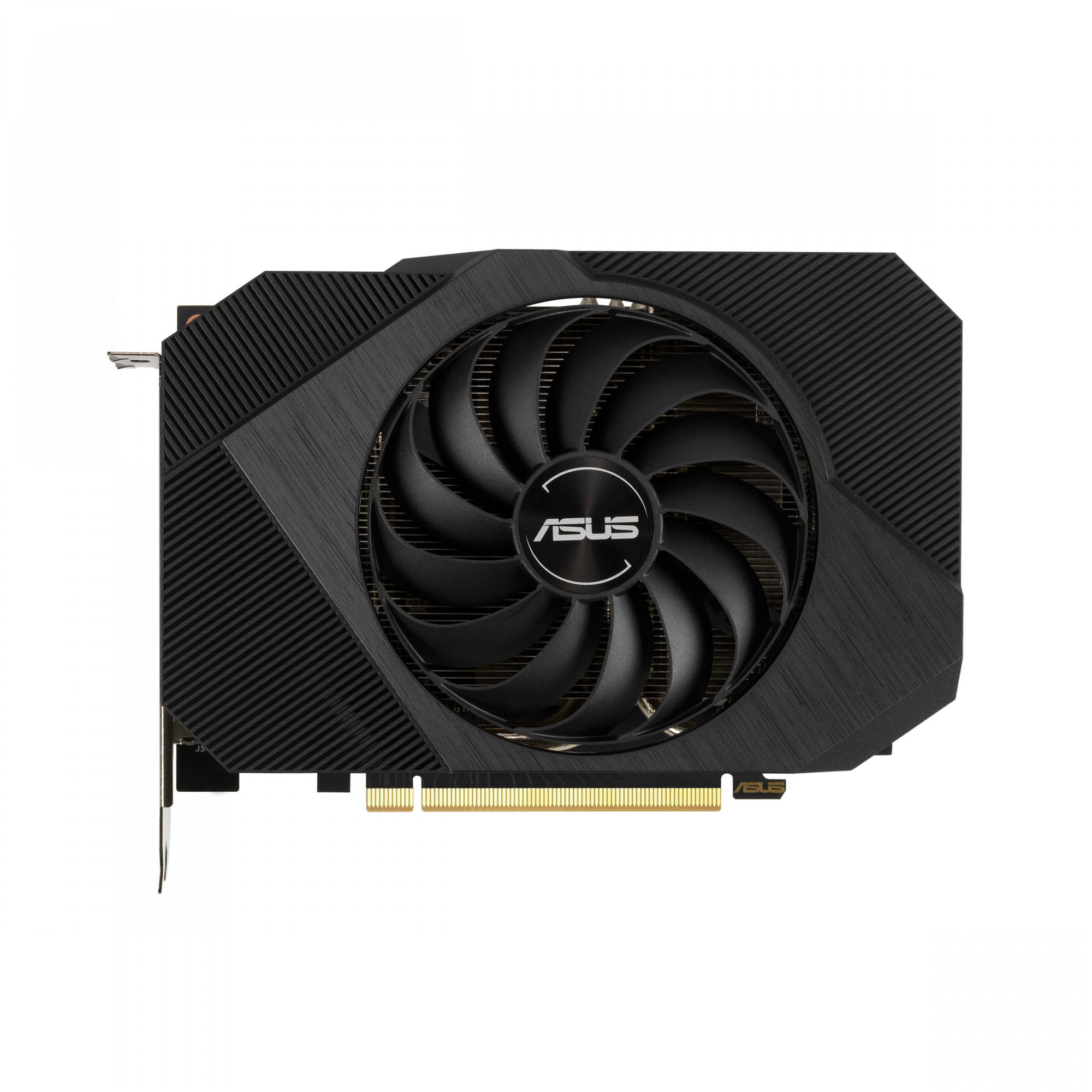

Axial-tech fan design has been tuned up with more fan blades and a reversed rotational direction for the center fan
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
Auto-Extreme Technology uses automation to enhance reliability

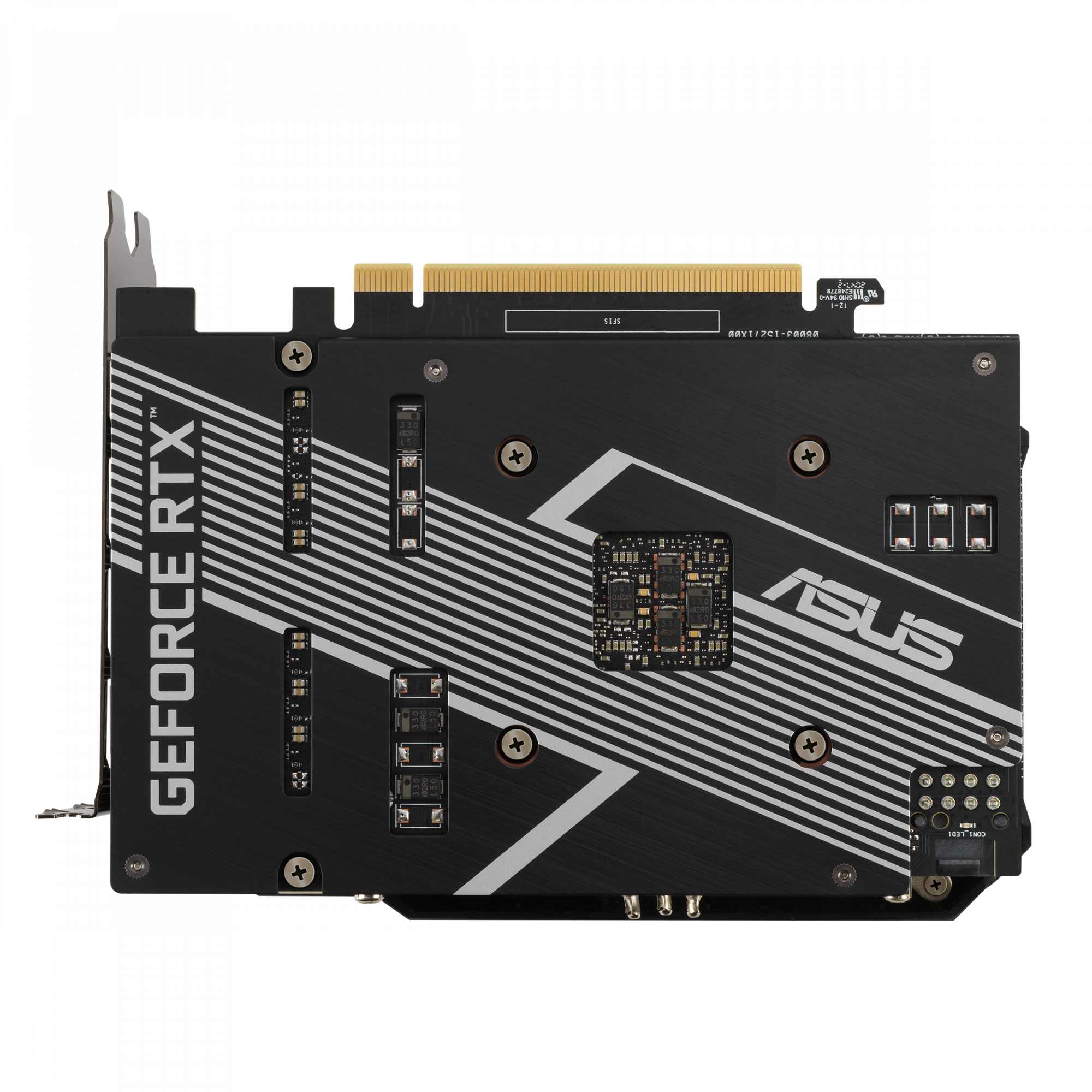

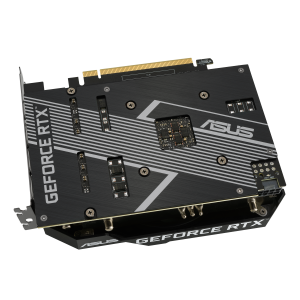

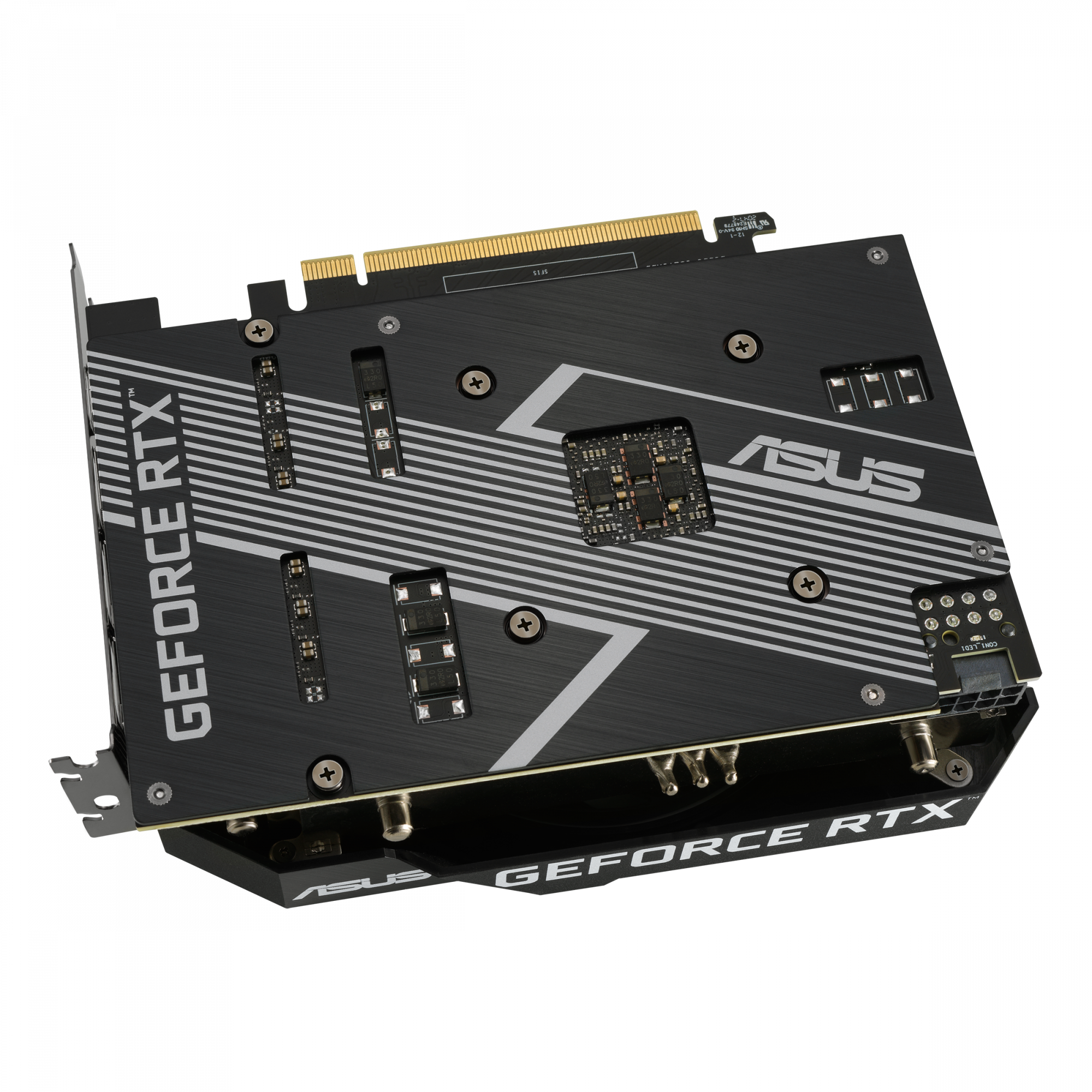

A protective backplate prevents PCB flex and trace damage

NVIDIA AMPERE ARCHITECTURE

The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.

RTX. IT’S ON.

Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.

DLSS AI ACCELERATION

NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.

Product Properties

Manufacturer
Asus

Model
PH-RTX3060-12G-V2

EAN
4711081310129

Bullet points

Point
2nd Generation RT Cores

3rd Generation Tensor Cores

A protective backplate prevents PCB flex and trace damage

Auto-Extreme Technology uses automation to enhance reliability

Dual ball fan bearings can last up to twice as long as sleeve bearing designs

NVIDIA Ampere Streaming Multiprocessors

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Half-Length (FH/HL)

Number of fans
1 fan(s)

Number of slots
2.55

Product colour
Black

Logistics data

Harmonized System (HS) code
84733020

Memory

Data transfer rate
15 Gbit/s

Discrete graphics card memory
12 GB

Graphics card memory type
GDDR6

Memory bus
192 bit

Packaging content

Manual
Yes

Packaging data

Package type
Box

Performance

DirectX version
12 Ultimate

Dual Link DVI
No

HDCP
Yes

NVIDIA G-SYNC
Yes

OpenGL version
4.6

TV tuner integrated
No

Ports & interfaces

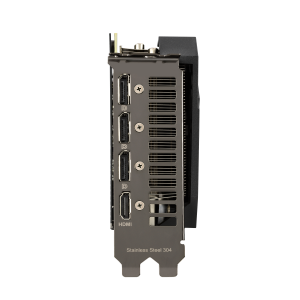

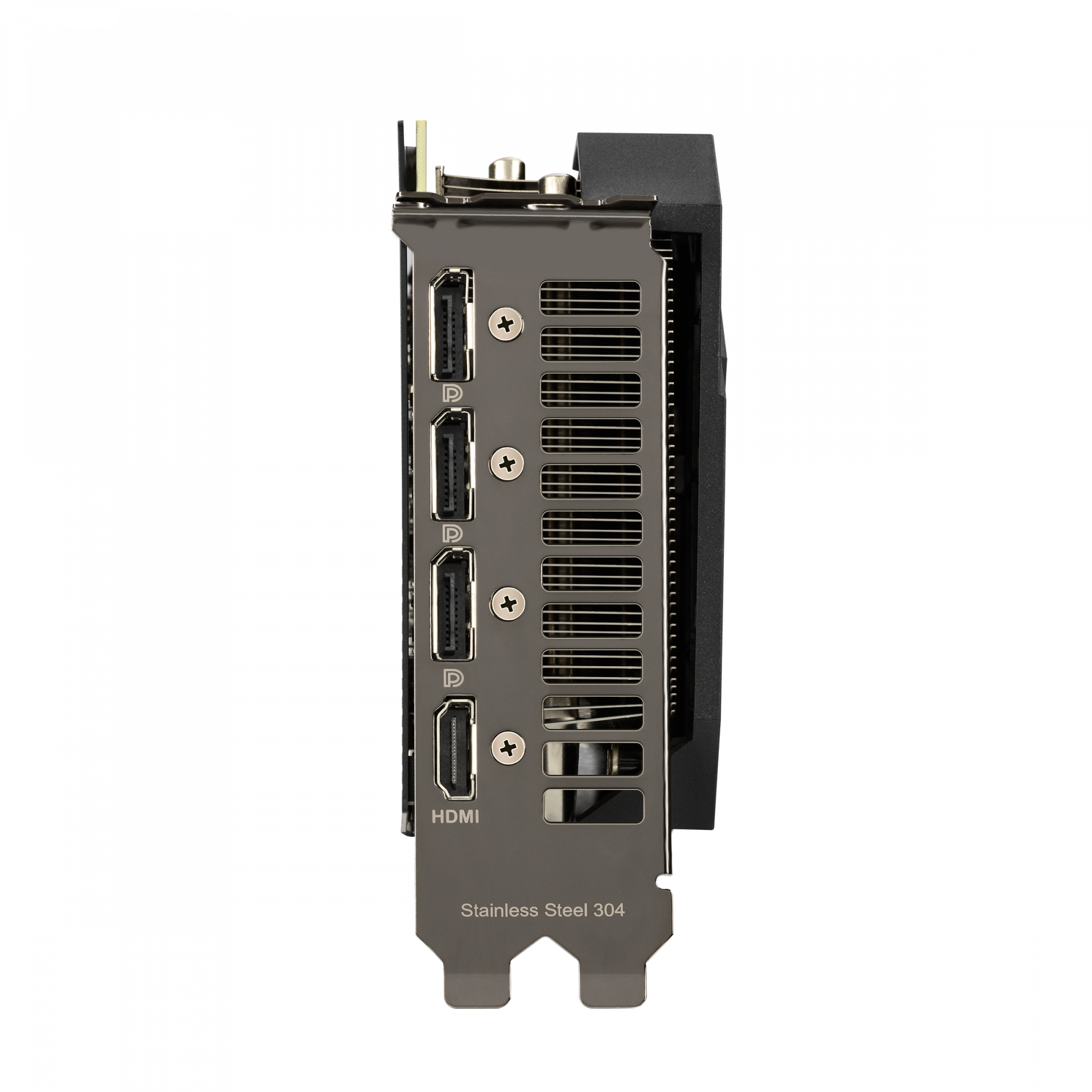

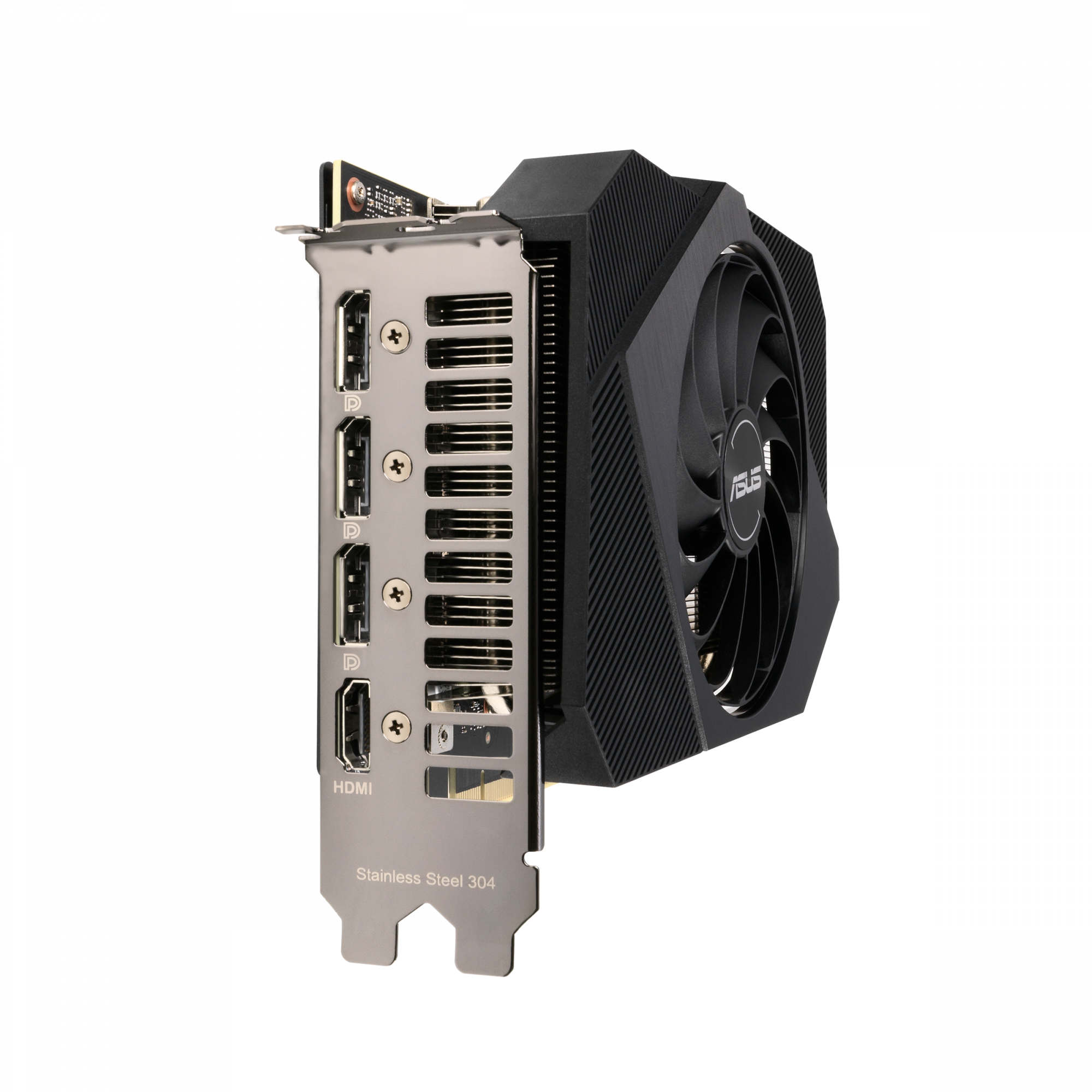

DisplayPort version
1.4a

DisplayPorts quantity
3

DVI-D ports quantity
0

DVI-I ports quantity
0

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Mini DisplayPorts quantity
0

Mini HDMI ports quantity
0

Thunderbolt 3 ports quantity
0

VGA (D-Sub) ports quantity
0

Power

Minimum system power supply
650 W

Supplementary power connectors
1x 8-pin

Processor

CUDA
Yes

CUDA cores
3584

FireStream
No

Graphics processor
GeForce RTX 3060

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
1777 MHz

Processor boost clock speed (OC mode)
1807 MHz

Weight & dimensions

Depth
51 mm

Height
128 mm

Length
177 mm

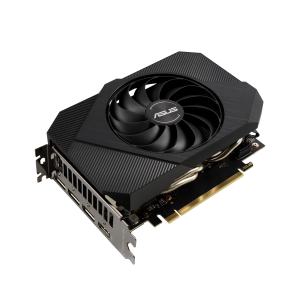

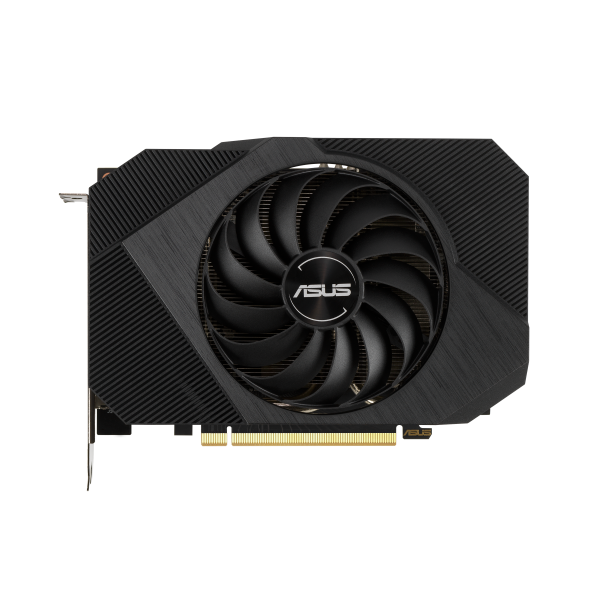

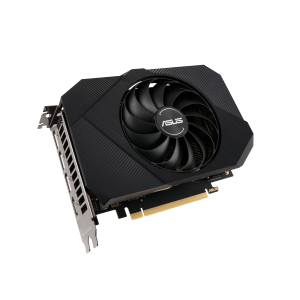

ASUS Phoenix PH-RTX3060-12G-V2 NVIDIA GeForce RTX 3060 12 GB GDDR6
