Description

ASUS ESC8000 G3. Motherboard chipset: Intel® C612, Processor socket: LGA 2011-v3, Processor family: Intel. Supported memory types: DDR4-SDRAM, Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB, 64GB, Maximum internal memory: 1536 GB. Storage drive sizes supported: 2.5", Supported storage drive interfaces: M.2, Serial Attached SCSI (SAS), Serial ATA III. On-board graphics adapter model: Aspeed AST2400, On-board graphics adapter memory: 32 MB. LAN controller: Intel® I210-AT

Product Properties

Manufacturer
Asus

Model
90SV01RA-M02CE0

EAN
4716659949084

Design

Certification
BSMI, CE, FCC(Class A)

Chassis type
Rack (3U)

Product colour
Metallic

Expansion slots

PCI Express x16 slots
9

PCI Express x8 slots
1

Features

Compatible operating systems
Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 Enterprise R2 SP1 64-bit RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer

Graphics

Graphics Processor
Aspeed AST2400

On-board graphics adapter memory
32 MB

Memory

Memory Slot Support
1536 GB

Number of DIMM slots
24

Supported DIMM module capacities
4GB, 8GB, 16GB, 32GB, 64GB

Supported memory types
DDR4-SDRAM

Supported RDIMM clock speeds
1333,1600,1866,2133,2400 MHz

Network

Ethernet LAN
Y

LAN controller
Intel® I210-AT

Operational conditions

Operating temperature (T-T)
10 - 35 °C

Storage relative humidity (H-H)
20 - 90%

Storage temperature (T-T)
-40 - 70 °C

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

IPMI LAN (RJ-45) port
Y

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

VGA (D-Sub) ports quantity
1

Power

Number of redundant power supplies installed
1

Power supply
1600 W

Processor

Motherboard chipset
Intel® C612

Number of processors supported
2

Processor family
Intel

Processor socket
LGA 2011-v3

Storage

Hot-swap HDD bays
Y

Number of storage drives supported
6

RAID levels
0,1,5,10

Storage drive sizes supported
2.5"

Supported storage drive interfaces
M.2, Serial Attached SCSI (SAS), Serial ATA III

Weight & dimensions

Depth
447 mm

Height
130.6 mm

Weight
29.2 kg

Width
759 mm

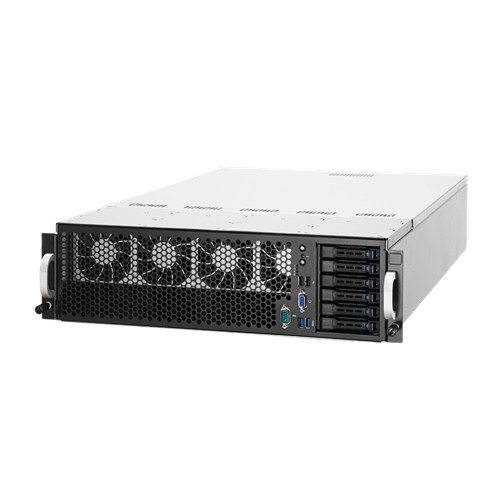

ASUS ESC8000 G3 Intel® C612 LGA 2011-v3 Rack (3U) Metallic
